Raumer Hang Fix M10XL (SS)

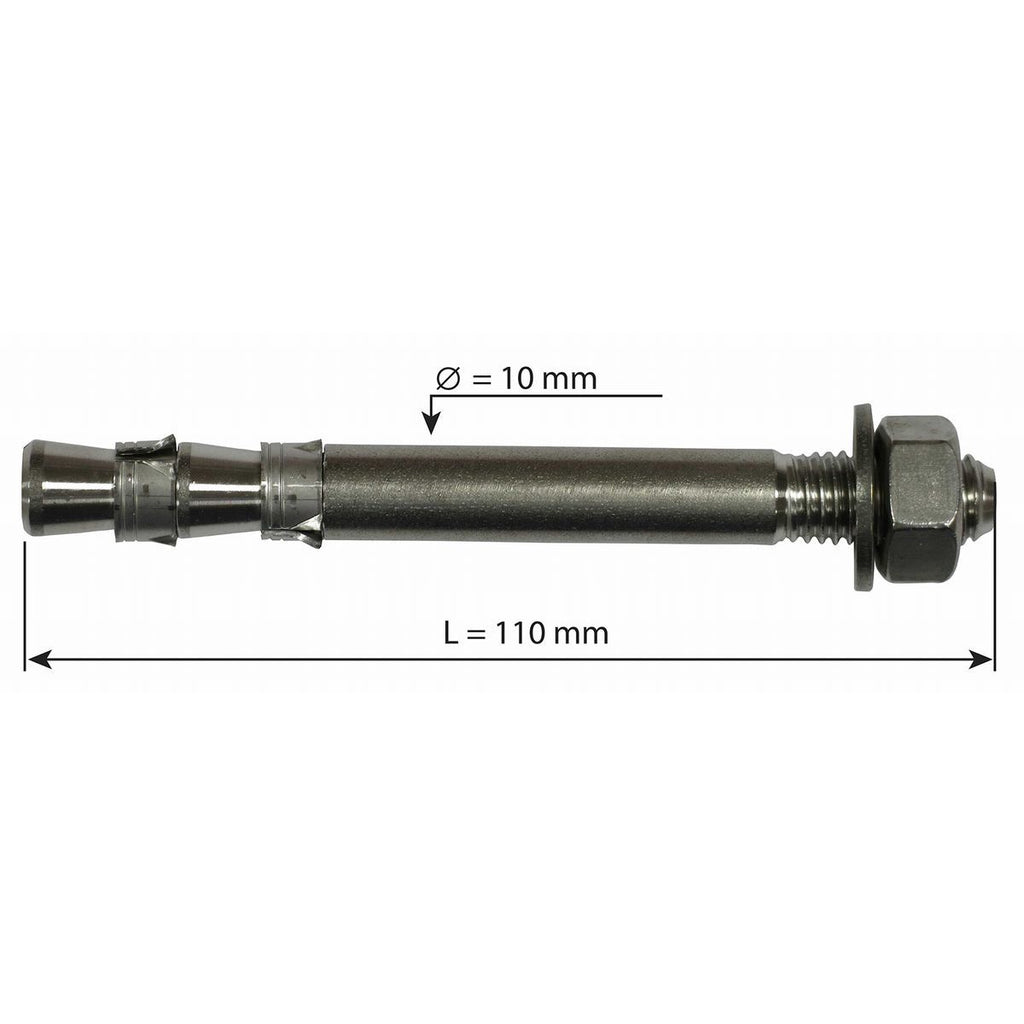

Art. 150 - HANG FIX Stainless Steel M10XL - Ø10x110

Description

This is the longest bolt in the 10mm range (diam.M10x110 mm stainless steel AISI 316L); this allows for excellent holding value on all types of suitable rock (moderately hard to compact rock).

This is the ideal anchor where the rock surface has been "damaged" by the elements.

However the rock below the surface which will interact with the expanding collars must be hard and compact.

New type

The expanding collar is a new design and has greatly improved on the previous version.

The design phase focused on creating a technology which ensures expansion on an increased number of surfaces.

Our tests show that this objective has been achieved.

Attention: On particularly soft rocks (such as sandstone) all expansion bolts - including our own - are not recommended due to the unreliable nature of the supporting material.

In these circumstances we recommend the use of fixed resin anchors (epoxy glue resin) or Multi-Monti screw anchors.

Technical Specification

The majority of our anchors are made with stainless steel AISI 316L, which offers a higher resistance to marine corrosion than the former AISI 304.

To highlight this difference each article is stamped with the relevant symbols.

However, bolts have not been branded as once in place, the symbols would be invisible, Instead, a small circular collar has been added (see photo above) to mark the difference between the two metals.

This allows verification of the type of bolt used at any time.

There is also a “Marina” version of this anchor which is highly resistant to saline corrosion.

To mark the difference between stainless steel AISI 316L and the marina version of the same material, all marine-suitable anchors have been marked with a fish symbol and the initials “INOX".

Note: As mentioned above, this branding is not used on bolts.

In order to differentiate the marine version, as well as the afore-mentioned collar there is a small engraved dimple which allows for accurate identification once the bolt is in place (See photo above).

MARINA version: Art. 150M

References

Extraction R = 21 KN

Radial R = 26 KN

Weight = 75 g

Reference legislation

See the attached data sheet
