Ronin Lift Power Ascender Kit

Ronin Lift Power Ascender Kit

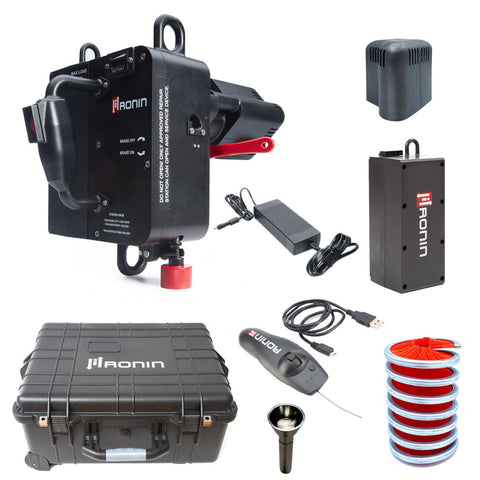

Kit Includes:

• (1) Ronin Lift Ascender with Anti-Panic Break

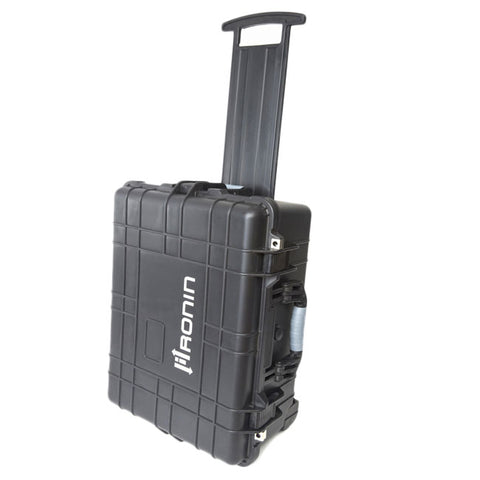

• (1) Ronin Hardcase
• (1) Rubber Motor Protector
• (1) Perfect Burn Rope Tip
• (1) Rope Brush

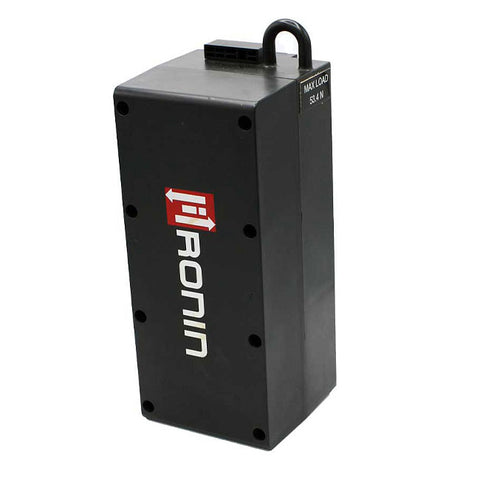

• (1) Battery
• (1) Charger
• (1) Bluetooth Wireless Remote

Features:

• A hot-swappable battery to keep you moving all-day
• A thumbwheel-trigger speed-control for easy operation
• A secondary lock for hands-free work
• Integration with a wide range of climbing technology
• A 400-lbs continuous lifting capacity
• Variable lifting speeds of up to 2 feet per second
• Lightweight and compact design at a max weight of 26 lbs

Be advised: For the Bluetooth Remote, the range is 300ft clear line of site, so they may have obstruction issues. High energy power lines of 350kv or higher can also affect the remotes.

Rope Requirements:

• Static line rope 32-strand or higher
• Kernmantle or Aramid Sheath
• After the rope is loaded the diameter doesn’t shrink below 10mm
• No larger than 12mm in diameter in a relaxed state
• Elongation for 10mm-11.5mm less than 2%
• Elongation for 11.6mm-12mm less than 3.3%
• Compatible Ropes:

  • Marlow Ronin HP Kernmantle Rope
  • WestFall Pro 1/2 Inch PSK Kernmantle Rope with Two Sewn Eyes (1/2 Inch)
  • Teufelberger KM-III Max Static Rope (11.0 MM)
  • Sterling Tech 125 Rope (12.5 mm)
  • Sterling WorkPro Rope (12.5 mm)
  • Sterling Rope Scion Climbing Line (11.5 mm)
  • PMI Hudson Classic Pro Kernmantle Rope (7/16 Inch)

Specifications:

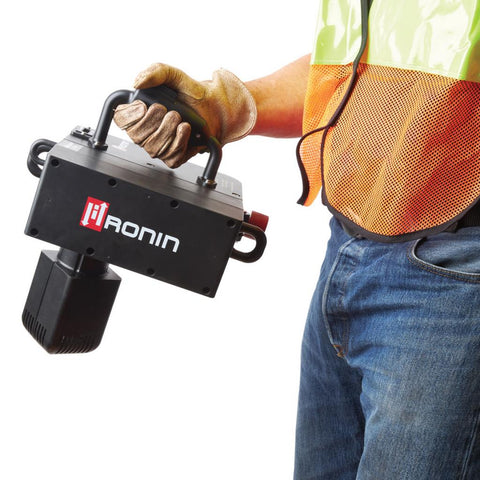

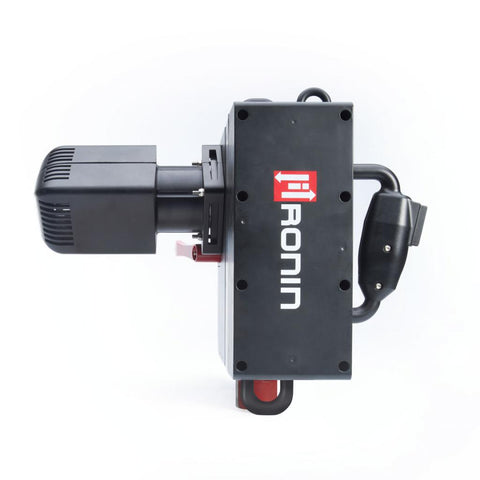

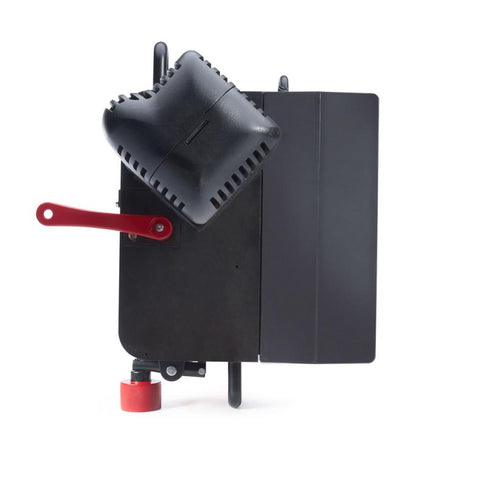

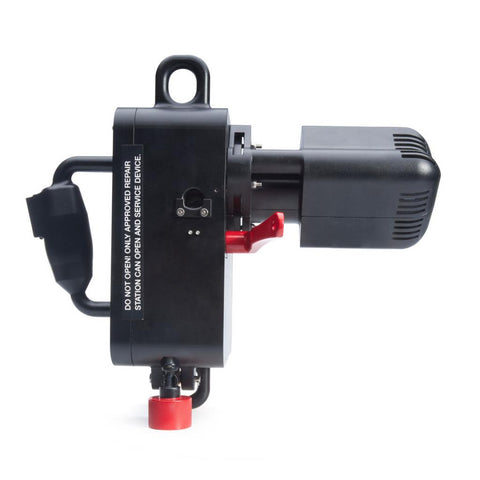

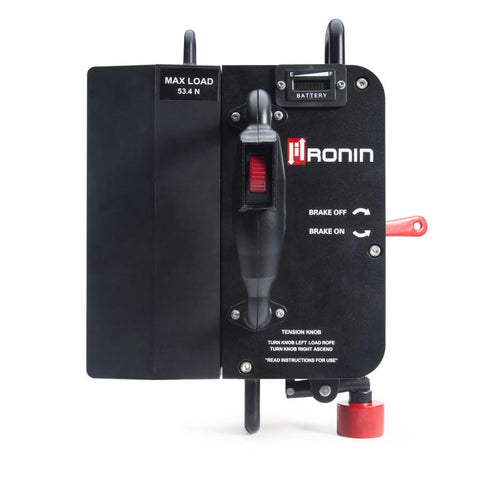

The Ronin Lift Power Ascender is a revolutionary, battery-powered rope ascender with a lightweight and durable design. The Ronin features a thumbwheel-trigger speed-control and a secondary lock for hands-free work. The battery is hot-swappable to keep you moving all day long. The Ronin was designed to integrate with a wide range of climbing technology so it will most likely work with your existing gear. The Ronin offers a 400-lbs continuous lifting capacity and a variable lifting speed of up to 2 feet per second.

The Ronin is built with steel and aluminum components and weighs only 26 lbs with its largest battery pack. Let your Ronin do all the heavy lifting to get you up and down your rope so you can save energy for other important tasks. Ronin Lift versatility allows the use of mechanical advantages up to 3:1, which means loads of up to 1200 lbs. (544 kg) can be accommodated. Both Ronin Lift anchor points are rated at 5,000 lbs. for confident rigging. Ronin Lift was developed to manage heavy loads in tough environments to help perform the task at hand. Even though it is one of the lightest machines on the market, it’s smooth, fast, and easy to use. Ronin Lift maintains controlled acceleration through its variable-speed thumbwheel up to the maximum safe working load of 400 lbs.

Specs

RON-KIT2805-11APWR
